Well Pump Pressure Switch: What It Does and How to Fix It

A well pump pressure switch tells your pump when to turn on and off based on water pressure in the tank. When it fails, you get symptoms like a pump that won’t shut off, water that sputters at the tap, or no water pressure at all. Most switches can be adjusted or swapped out in under an hour with basic tools.

This part sits between your pressure tank and the plumbing that feeds your house. It has two built-in pressure settings: a cut-in point at which the pump kicks on and a cut-out point at which it shuts off. A standard setup runs at 20-40 psi or 30-50 psi, though this varies by system.

How a Pressure Switch Works

Inside the switch, a small diaphragm reacts to water pressure in the line. As pressure drops, the diaphragm moves and closes electrical contacts that send power to the pump. Once pressure climbs back to the cut-out point, the contacts open and the pump stops.

Two springs control these settings. The larger spring sets the cut-in pressure, and the smaller spring sets the differential, the gap between cut-in and cut-out. Turning the nuts on these springs raises or lowers each setting, which is how you adjust the switch without replacing it.

Most residential switches are rated for a specific pressure range printed right on the housing, often something like 20/40 or 30/50. Going outside that rated range can damage the switch or strain the pump, so any adjustment should stay within what the unit was built for.

Common Signs of a Failing Switch

1. Pump Won’t Turn On

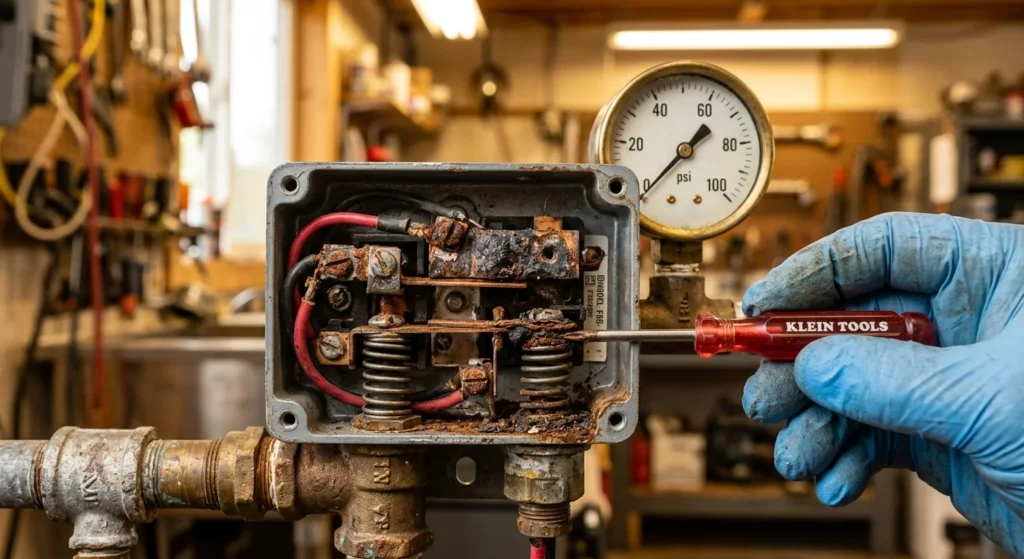

If you turn on a faucet and get nothing, the switch contacts may have corroded or welded shut in the open position. Before assuming the switch is bad, check the breaker and confirm the pump itself has power at the switch terminals with a multimeter.

2. Pump Won’t Shut Off

A pump that keeps running even after tanks and taps show full pressure usually means the contacts are stuck closed, or the cut-out setting has drifted too high. Left unchecked, this burns out the pump motor, so this symptom needs quick attention.

3. Rapid Cycling

Short cycling, where the pump turns on and off in quick bursts, often points to a waterlogged pressure tank rather than the switch itself. Tap the switch housing gently while running water; if cycling changes, corrosion inside the switch may be the culprit instead.

4. Inconsistent Water Pressure

Pressure that surges, drops, or sputters at the faucet can mean the differential spring has weakened or the pressure sensing port is clogged with sediment. This is common in older wells with iron or mineral buildup in the water.

Adjusting the Pressure Switch

Adjusting settings is often cheaper and faster than replacing the whole unit, especially if the switch is otherwise in good shape. Shut off power to the pump at the breaker before opening the switch cover; the terminals inside carry live voltage whenever the system is powered.

Remove the small screw-on cover to expose the two springs and their adjustment nuts. Turning the large nut clockwise raises both cut-in and cut-out pressure together, while turning the small nut clockwise increases the differential, raising cut-out while leaving cut-in roughly the same.

Make adjustments in small increments, about a quarter turn at a time. After each adjustment, restore power, watch the gauge through a full cycle, and confirm the pump starts and stops at the pressures you expect before making further changes.

If the pump cuts out well below the rated maximum for your tank or pressure vessel, don’t push the differential higher just to gain pressure. Check your tank’s max PSI rating first, since exceeding it risks tank failure.

When to Replace the Switch

A switch is worth replacing rather than adjusting when the housing shows rust through the metal, the contacts are visibly pitted or burned, or adjustment no longer holds and the settings drift within days. Frequent short cycling that persists after checking the tank’s air charge also points to a worn switch.

Replacement switches typically cost between 15 and 40 dollars for standard residential models, and the job usually takes 30 to 60 minutes for someone comfortable with basic wiring. Higher-end switches with adjustable differential dials or weatherproof housings run higher.

Steps to Replace a Well Pump Pressure Switch

Turn off power at the breaker and confirm it’s off with a voltage tester at the switch terminals. Never work on a pressure switch with power still connected, since the contacts sit right at the wiring terminals.

Release the pressure from the system by opening a faucet or the tank’s drain valve, then remove the wires from the old switch, noting which wire goes to which terminal or taking a photo first. Unscrew the old switch from the tee fitting, which usually just threads off by hand or with a wrench.

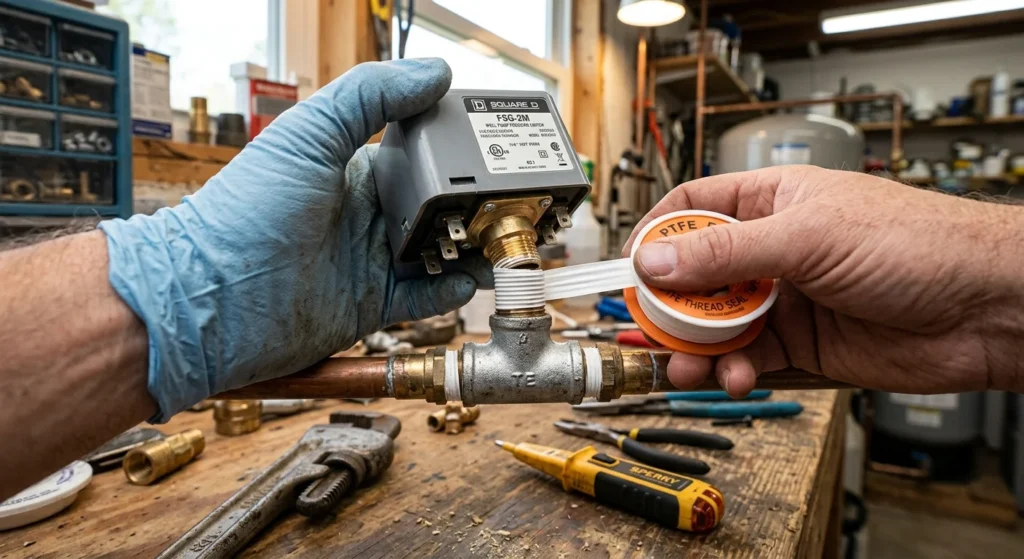

Wrap the threads on the new switch with plumber’s tape and thread it into the tee fitting, tightening until snug but not overtightened, which can crack the housing. Reconnect the wires to match the original layout, replace the cover, and restore power.

Run the system through at least two full cycles while watching the gauge to confirm cut-in and cut-out match your target range. Check the fitting and wire connections for leaks or looseness after the first cycle.

Safety Notes

Well pump circuits typically run on 230 volts, higher than standard household outlets, so always confirm the breaker is off with a tester rather than trusting the panel label alone. Standing water near the pressure tank area raises shock risk, so keep the immediate work area dry before touching any wiring.

If your well system uses a cistern, constant-pressure controller, or variable-speed pump, the switch setup may differ from a standard single-speed system, and the manufacturer’s manual should guide any adjustment rather than general settings.

Preventing Future Switch Problems

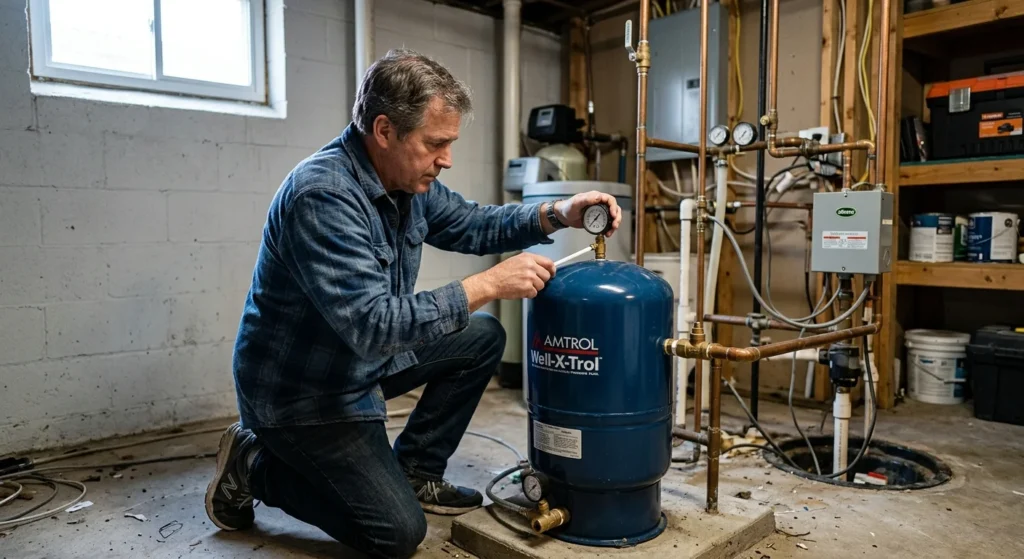

Checking the pressure tank’s air charge once or twice a year with a tire gauge, with the tank drained of water first, helps the switch cycle correctly and reduces wear from short cycling. The correct air charge is usually 2 psi below the switch’s cut-in setting.

Keeping the switch area clean and dry, and checking for small drips at nearby fittings, catches corrosion before it reaches the contacts. In homes with iron-heavy well water, a sediment filter ahead of the pressure tank cuts down on buildup inside the switch’s sensing port.

Types of Pressure Switches

Standard mechanical switches use the spring and diaphragm setup described above and remain the most common choice for residential wells. They are inexpensive, easy to source at any hardware store, and simple to adjust with a screwdriver.

Adjustable differential switches let you set cut-in and cut-out independently rather than relying on a fixed spring relationship between the two. These cost more but give tighter control over pressure range, which helps in homes with sensitive plumbing fixtures or tankless water heaters.

Electronic pressure switches use a sensor and control board instead of mechanical springs and contacts. They tend to last longer since there are no physical contacts to corrode, though they cost more upfront and typically need a licensed technician for setup and troubleshooting.

Pressure Switch vs Pressure Sensor

A traditional pressure switch is a simple on-and-off device; the pump either runs at full power or sits off. A pressure sensor, used with constant-pressure or variable-speed pump controllers, continuously monitors pressure and adjusts pump speed to hold a steady output rather than cycling on and off.

Homes with older single-speed pumps almost always use a mechanical switch. If your system has a control box with a digital display near the pressure tank, you likely have a sensor-based setup, and the adjustment steps in this article won’t apply directly.

Wiring Considerations

Most residential pressure switches use four terminals, two for the incoming power line and two for the line going out to the pump. Some 230-volt setups also include a ground screw on the housing itself, which should always be reconnected during replacement.

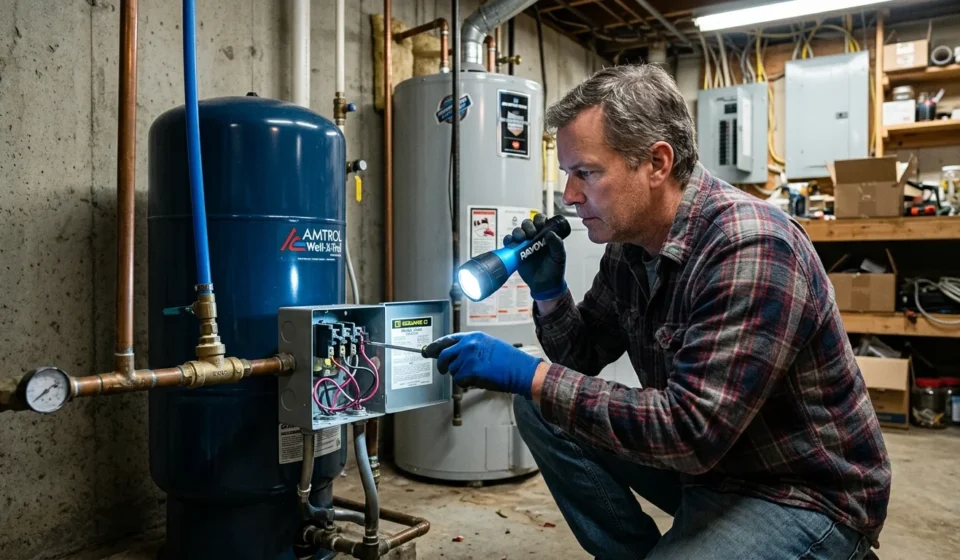

Loose wire connections at the switch terminals are a frequent cause of intermittent pump operation that gets mistaken for a bad switch. Before replacing a switch that seems to fail randomly, shut off power and check that each wire is seated firmly under its terminal screw.

If the wire insulation looks brittle, cracked, or discolored near the terminals, replace that section of wire rather than just installing a new switch, since damaged insulation near a 230 volt connection is a fire and shock risk.

DIY Repair vs Calling a Professional

Adjusting settings or swapping a straightforward mechanical switch is a reasonable DIY task for anyone comfortable shutting off a breaker and working with basic hand tools. The parts are inexpensive, and mistakes at this stage are usually recoverable.

Call a licensed well or pump technician if the system uses a constant-pressure controller, if the pump itself needs to be pulled from the well, if wiring shows damage beyond the switch, or if adjustments haven’t fixed a cycling or pressure problem after a couple of attempts. Misdiagnosing a pump or tank issue as a switch problem wastes time and can lead to a burned-out motor.
