Home Wiring Installation: A Complete Practical Guide
Home wiring installation is not a single task. It is a sequence of decisions, from planning circuit layouts to choosing wire gauge, sizing breakers, and passing inspection. Get one step wrong, and you risk a failed inspection, a tripped breaker every week, or, in the worst case, a house fire. This guide walks through the process the way a licensed electrician would approach it, room by room, so you understand what is happening whether you are hiring out the work or handling part of it yourself.
Planning a Home Wiring Installation Before Any Wire Is Pulled
Every good installation starts on paper, not with a drill. Walk through each room and note where outlets, switches, and fixtures need to go, then group them into logical circuits. A circuit is simply a loop of wire running from the breaker panel, through devices, and back. Overloading one circuit with too many high-draw appliances is the single most common wiring mistake in older homes.
Kitchens and bathrooms need dedicated circuits because of appliance load and moisture exposure. Bedrooms and living areas can usually share a circuit for lighting and general outlets, as long as the combined load stays under 80 percent of the breaker’s rating. This 80 percent rule matters more than most people realize. A 20-amp circuit should carry no more than 16 amps of continuous load, which keeps the wire from overheating during normal use.

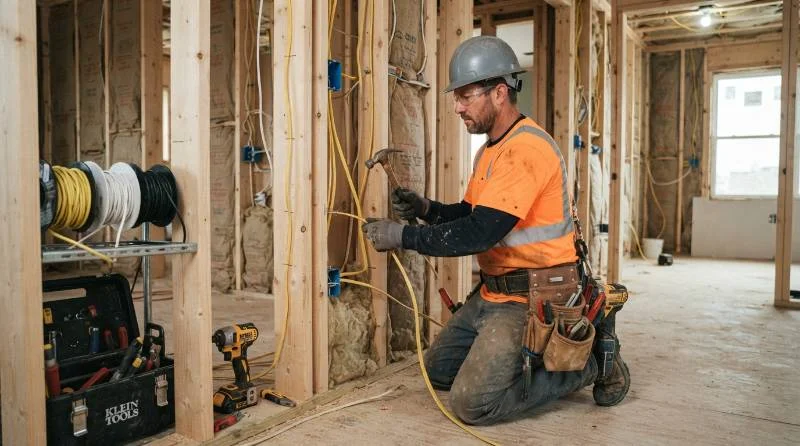

Sketching a layout also reveals where you will need to run wire through studs, joists, or existing finished walls. Fishing wire through a finished wall is far more labor-intensive than wiring an open frame, so if you are renovating, this is the moment to make changes before drywall goes up.
Choosing the Right Wire Gauge and Type
Wire gauge determines how much current a wire can safely carry, and using the wrong gauge is a fire hazard, not just a code violation. The rule is straightforward: thicker wire (a lower gauge number) carries more current.
1. Common Wire Gauges and Their Uses

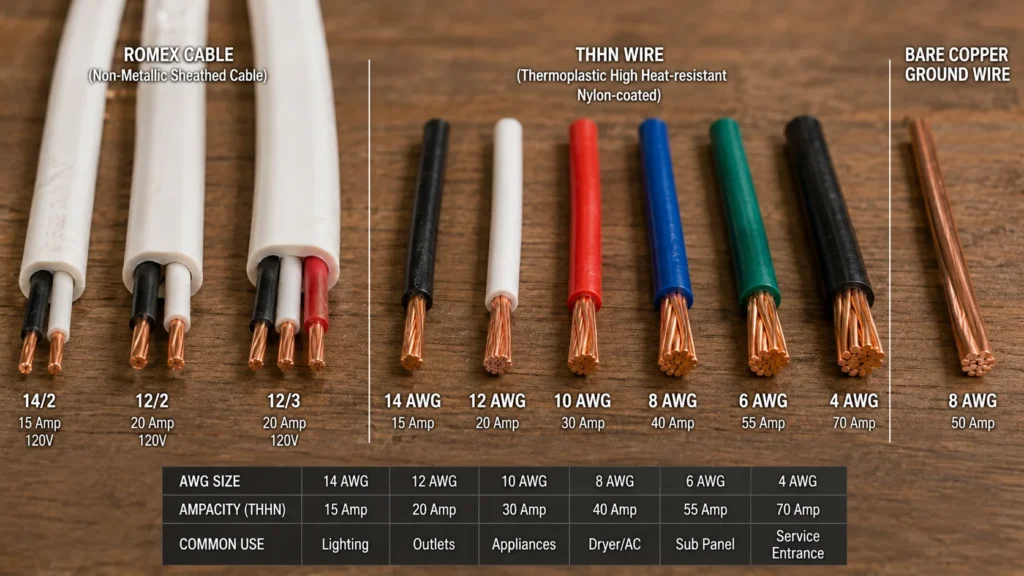

14-gauge wire is rated for 15-amp circuits and typically feeds general lighting and standard outlets. 12-gauge wire handles 20-amp circuits, which is standard for kitchen counters, bathrooms, and garages. 10-gauge wire supports 30-amp circuits, often used for electric dryers and window air conditioners. 6-gauge and larger wire is reserved for major appliances like electric ranges and central air units, or for the main feed to a subpanel.
Never mix gauge sizes on the same circuit without accounting for the smallest wire’s rating, since the breaker must match the weakest link in the chain. Many inspectors reject work specifically because a homeowner ran 14-gauge wire off a 20-amp breaker, which leaves the wire unprotected against overcurrent.
2. NM Cable, THHN, and When Each Applies
Non-metallic sheathed cable, commonly called Romex, is the standard choice for most interior residential wiring because it is affordable and easy to run through framing. THHN wire, run individually through conduit, is used in garages, unfinished basements, and any location where the cable needs mechanical protection or will be exposed. Underground feeder cable is rated for direct burial and is used for wiring detached garages, sheds, or outdoor lighting circuits.
Breaker Sizing and Panel Capacity
A breaker exists to protect the wire, not the appliance plugged into it. That means breaker size is chosen based on the wire gauge feeding the circuit, never the other way around. Installing a 30-amp breaker on 12-gauge wire is a serious hazard because the breaker will not trip before the wire overheats.

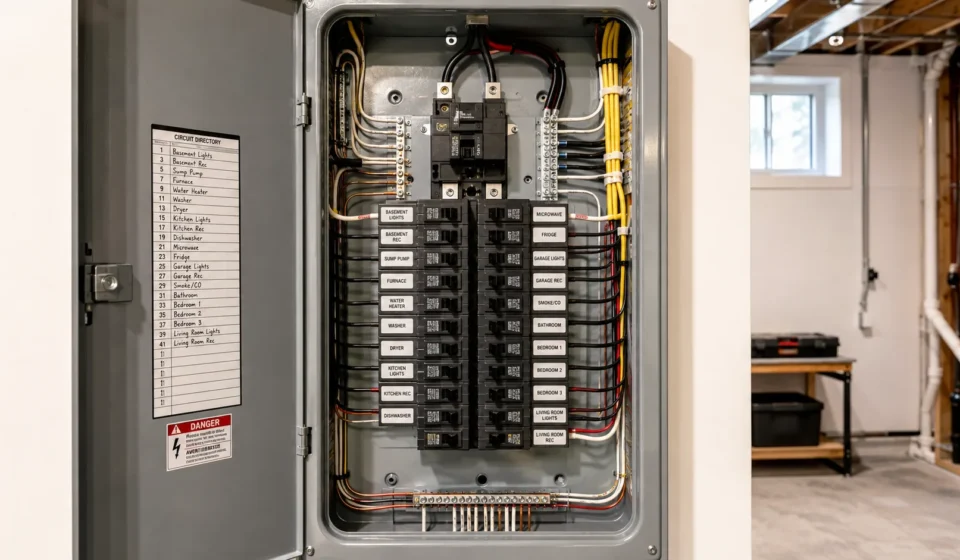

Before adding new circuits, check your panel’s total capacity. A 100-amp panel is often enough for a small home with gas heat and a gas water heater, but a home with electric heat, an electric range, and central air conditioning generally needs 150 to 200-amp service. If you are adding several new circuits for a renovation or an EV charger, have an electrician calculate the total connected load first. Panels that are already near capacity may need an upgrade before any new wiring installation can proceed safely.
Room by Room Wiring Considerations
1. Kitchens
Kitchens need at least two dedicated 20-amp small appliance circuits for countertop outlets, plus separate circuits for the refrigerator, dishwasher, and disposal. Every countertop outlet within 6 feet of a sink requires GFCI protection.
2. Bathrooms

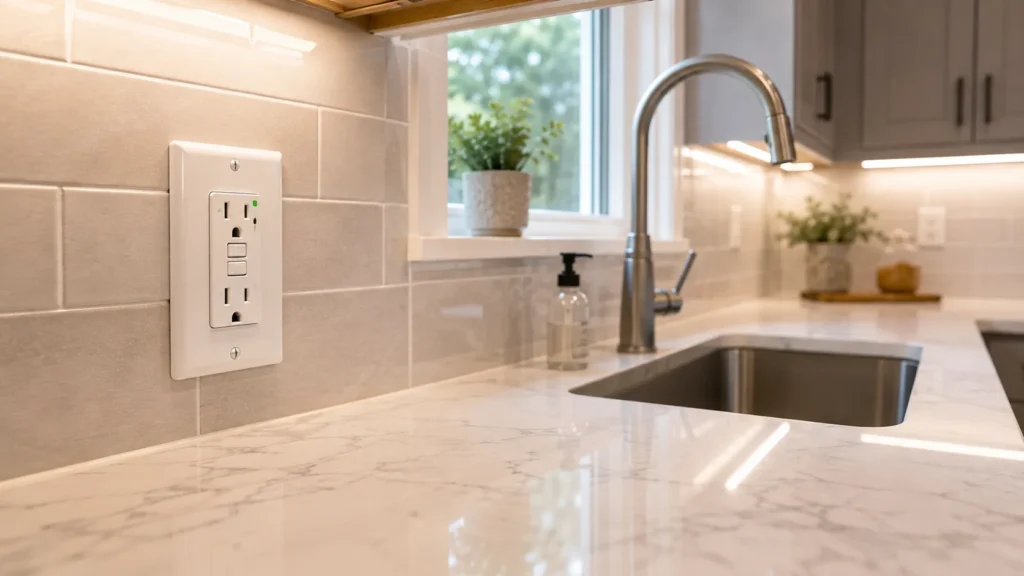

Bathrooms require a dedicated 20-amp circuit for outlets, and every outlet must be GFCI-protected regardless of distance from water. Exhaust fans and heat lamps typically run on a separate lighting circuit. Those same wet-location circuits are also where code requires GFCI protection, so it’s worth knowing the warning signs of a GFCI outlet that’s stopped doing its job.
3. Bedrooms and Living Spaces
Since 2002, the national code has required arc-fault circuit interrupter (AFCI) protection on nearly all bedroom and living-area circuits because arc faults from damaged cords or wiring are a leading cause of electrical fires that standard breakers do not catch.
4. Garages, Basements, and Outdoor Areas
These spaces need GFCI protection on all outlets and often benefit from conduit rather than exposed cable, since they are more prone to impact damage and moisture. Outdoor outlets also need weatherproof in-use covers that stay closed even when a cord is plugged in.
Home Wiring Installation: A Room-by-Room Guide
Home wiring installation is not a single task. It is a sequence of decisions, from planning circuit layouts to choosing wire gauge, sizing breakers, and passing inspection. Get one step wrong, and you risk a failed inspection, a tripped breaker every week, or, in the worst case, a house fire. This guide walks through the process the way a licensed electrician would approach it, room by room, so you understand what is happening whether you are hiring out the work or handling part of it yourself.
Whether you’re wiring a new build, finishing a basement, or rewiring an older home, the sequence of decisions stays the same: plan the layout first, choose the correct wire for each circuit’s load, size the breaker to protect that wire, and follow room-specific code requirements before you ever call for an inspection.
FAQs
1. What size wire do I need for a 20-amp circuit?
Use 12-gauge wire for a 20-amp circuit. This is standard for kitchen counters, bathrooms, and garages.
2. Can I put a 30-amp breaker on 12-gauge wire?
No. The breaker must match the wire’s rating. A 30-amp breaker on 12-gauge wire won’t trip before the wire overheats, creating a fire hazard.
3. Do all bathroom outlets need GFCI protection?
Yes. Every bathroom outlet must be GFCI-protected regardless of how far it is from a water source.
4. Is a 100-amp panel enough for a house with central air and an electric range?
Usually not. Homes with electric heat, an electric range, and central air conditioning generally need 150 to 200-amp service.
5. What’s the difference between Romex and THHN wire?
Romex (NM cable) is used for most interior residential wiring inside framing. THHN wire runs through conduit and is used in garages, unfinished basements, or anywhere the wire needs extra mechanical protection.
